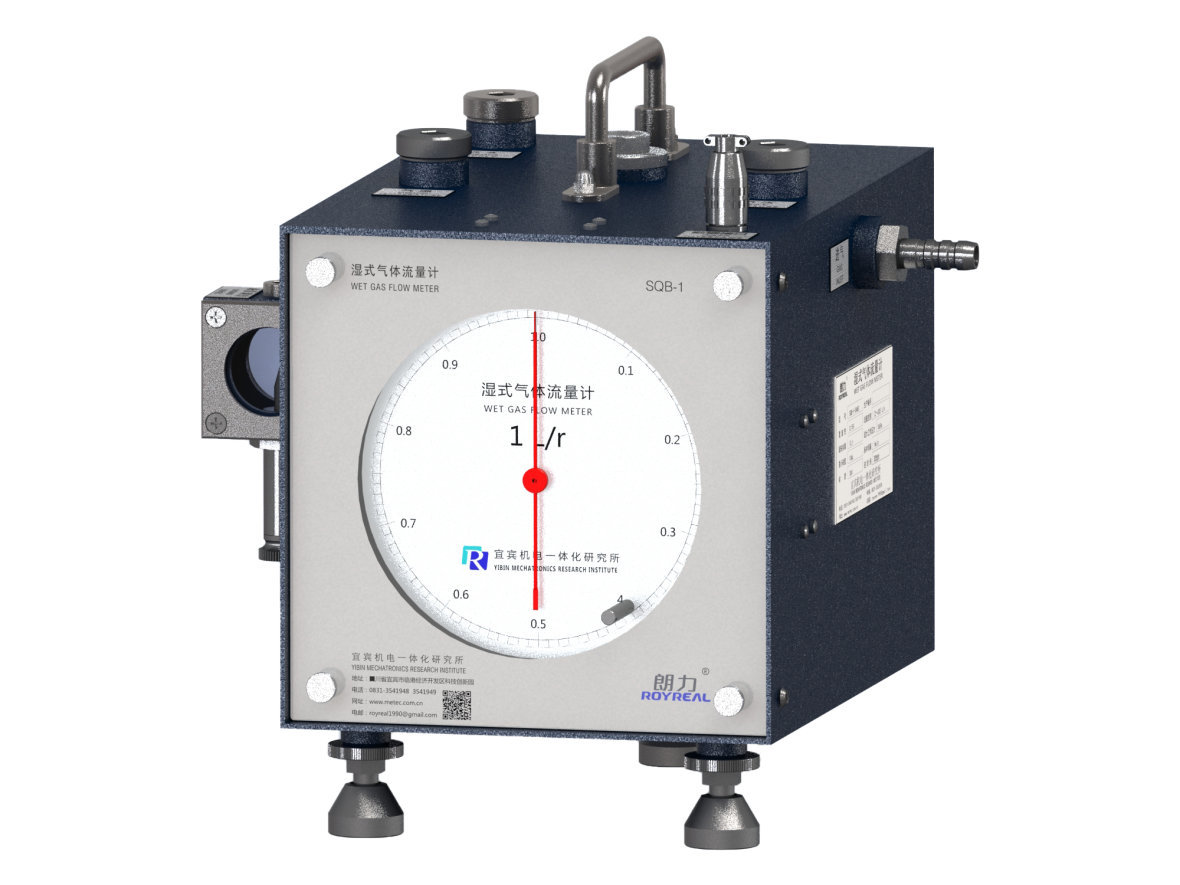

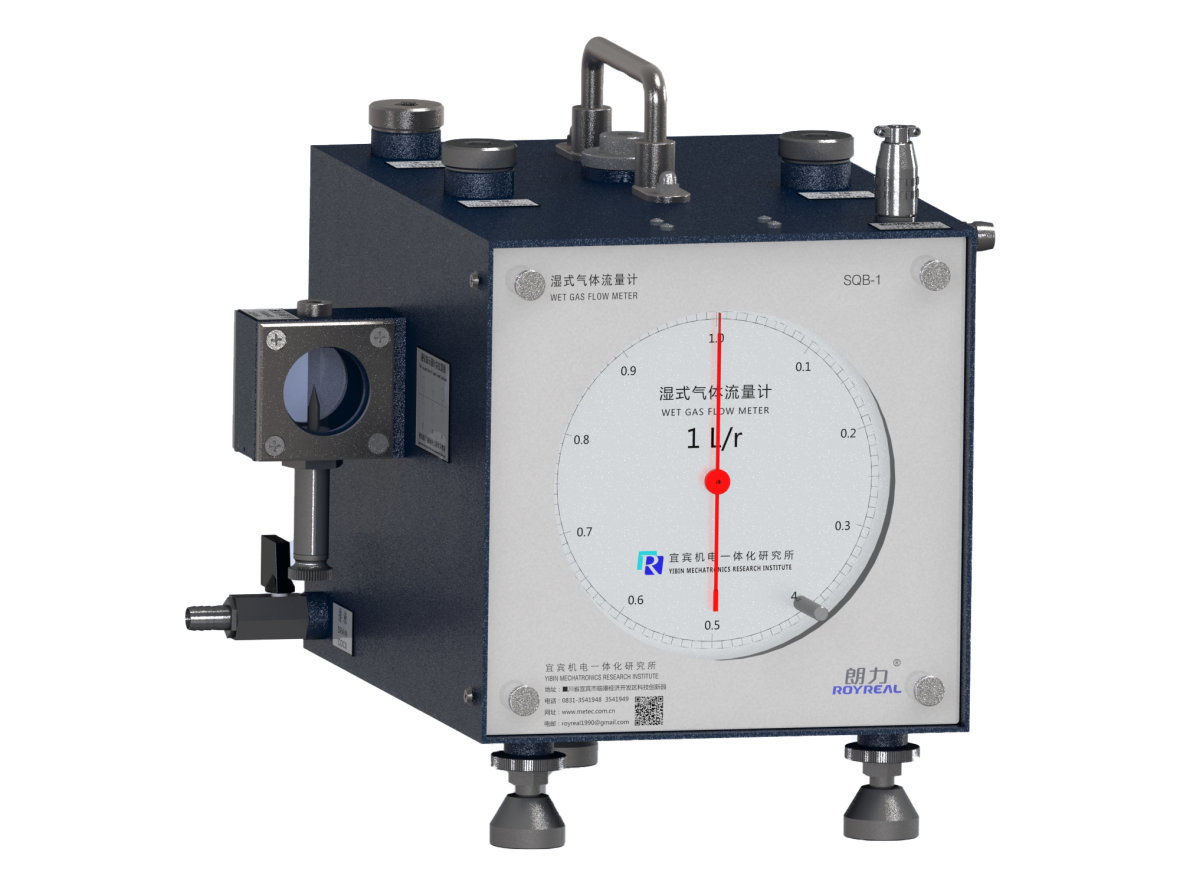

SQB-1-SAANI Wet Gas Flow Meter

Category： Encoder Type Wet Gas Flow Meter

Enquiry

Product Description

Product Introduction

The wet gas flowmeter is a volumetric gas flowmeter. Its measurement range ranges from 0.016L/min for small flow to 200L/min for large flow. It has high accuracy, no leakage, and good stability. It is suitable for gas volume or flow measurement in laboratories, research institutions, environmental measurement, production sites, etc. It can also be used as a transmission standard and working standard, and is widely used in gas appliances, energy, chemical industry, environment, medicine, calibration and other industries. The products have been exported to Europe, America, Asia and other countries and regions.

Product Features

1. Extra-wide flow range 1:300
2. Repeatability better than 0.1%
3. Intelligent correction (Volume and flow rate automatic correction)
4. Various automatic measurement methods (constant volume output, timing output, and fixed whole revolution output)
5. Full digital flow meters (Temperature, Pressure, Volume, High-precision measurement of flow, RS485 Bus Communication)
6. Intelligent wire control start and stop
7. Each is strictly calibrated with 0.05-stage active piston prover to ensure accuracy
8. No leakage (using advanced magnetically coupled transmission technology, non-oil seal)

Precision (Repeatability)

Standard Flow Range: ± 0.1% (Standard deviation)
Entire Flow Range: ± 0.15% (Standard deviation)

Material (Anti-corrosion)

304 stainless steel
316 stainless steel (customized)
Temperature measurement:（0～50）℃
Pressure measurement:（0～10）kPa

Parameters

Product type	Encoder Type	Application	Gas
Warranty	12 Months	After-sales Service	7*24 h
Model No.	SQB-1-SAANI	Flow Range	0.033 L/min~10 L/min(2 L/h~600 L/h)
Accuracy	0.15%	Drum Volume	1L/Rev.
Pressure Loss	≤ 120Pa	Material	SS304
Working Pressure	≤ 10 kPa	Ambient Temperature	(20±2)ºC
Pulse Number	1000	Operating voltage	5V±5% DC
Meter Size	278mm278mm265mm	Net Weight	9 kg
Meter Color	Black	Packing	Carton box
Packing Size	500490490 mm	Gross Weight	20 kg
HS Code	9026801000	Certification	ISO9001 ISO14001 ISO45001
Brand	ROYREAL	Country of Origin	China

Wet Gas Flow Meter

Model	Drum Volume	Flow Range	Standard Flow Range	Pressure Loss
SQB-0.5	0.5L	(1~300)L/h，(0.016~5)L/min	(8~270) L/h，(0.133~4.5)L/min	≤ 120Pa
SQB-1	1L	(2~600)L/h，(0.033~10)L/min	(10~540) L/h，(0.166~9)L/min	≤ 120Pa
SQB-2	2L	(4~1200)L/h，(0.066~20)L/min	(16~1080) L/h，(0.266~18)L/min	≤ 120Pa
SQB-2.5	2.5L	(5~1500)L/h，(0.083~25)L/min	(20~1350) L/h，(0.333~22.5)L/min	≤ 120Pa
SQB-5	5L	(10~3000)L/h，(0.166~50)L/min	(30~2700 L/h，(0.5~45)L/min	≤ 120Pa
SQB-10	10L	(20~6000)L/h，(0.333~100)L/min	(40~5400) L/h，(0.666~90)L/min	≤ 150Pa
SQB-20	20L	(50~10000)L/h，(0.833~166)L/min	(60~9000) L/h，(1~150)L/min	≤ 250Pa
SQB-25	25L	(100~12000)L/h，(1.66~200)L/min	(120~10800) L/h，(2~180)L/min	≤ 250Pa
