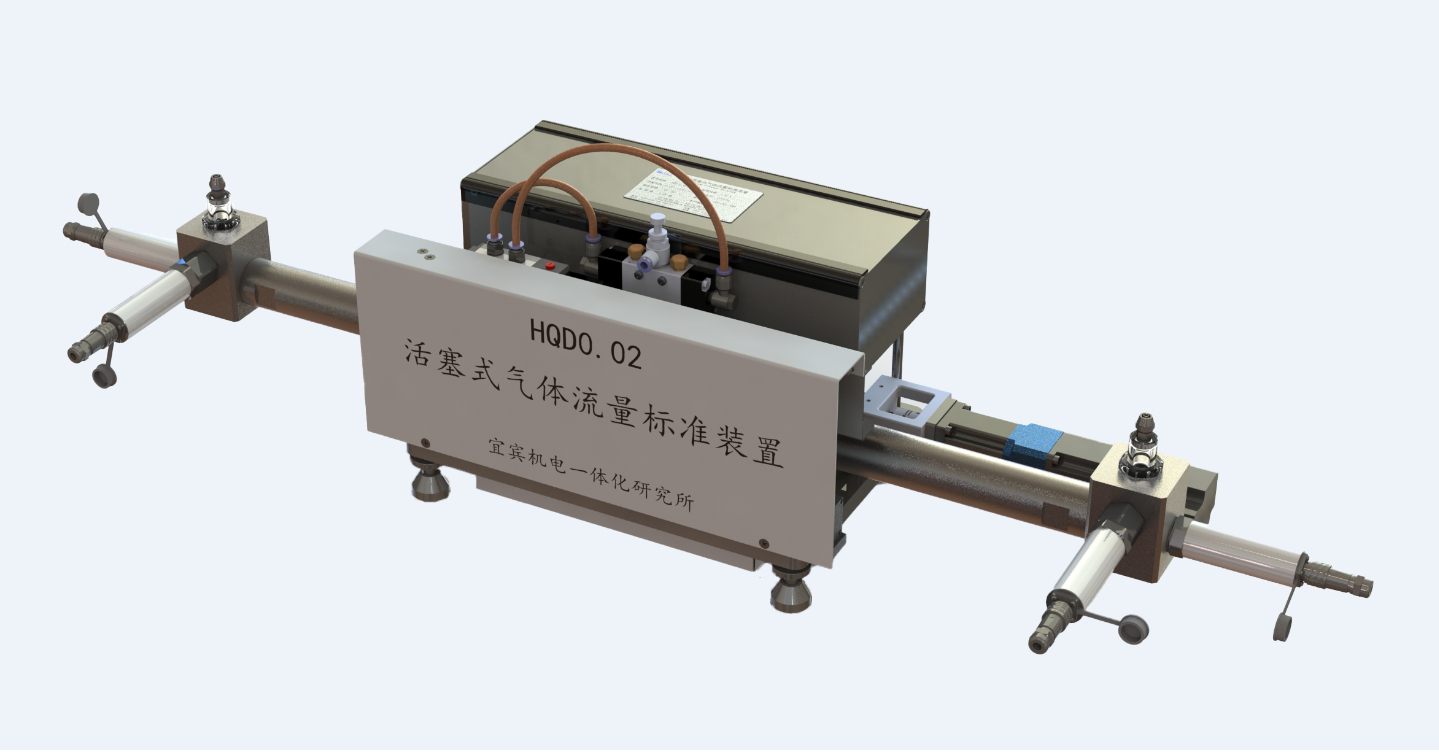

HQD Type Micro Active Piston Prover

Product Description

Description

A new-type micro active piston prover (flow range: 0.04–1000 mL/min) with high accuracy, wide flow/pressure adjustment, efficient auto-control, and uniform temperature. Suitable for testing, calibration, quantity value transfer, and traceability of micro gas flowmeters under different pressures. Ideal for calibrating mass flowmeters, mass flow controllers, laminar flowmeters, sonic nozzles, micro flowmeters, and leak detectors—used in semiconductors, electronics, pharmaceuticals, aerospace, environmental protection, chemical engineering, and manufacturing.

Features

1. Wide flow/pressure range with stable output

2. Digital testing technology for high precision

3. Multi-layer sealing (leak-free, self-lubricating)

4. No measurement errors caused by temperature inconsistency

5. Balanced double-piston technology (pre-adjusts flow/pressure)

Parameters

Item	Parameters	Item	Parameters
Uncertainty	≤0.05%, ≤0.1%	Flow Stability	≤0.1%
Maximum Working Pressure	1MPa abs	Pressure Testing	(0～1)MPa abs
Temperature Testing	(10～30)℃	Humidity Testing	(0～100)%RH
Power Supply	220V±20V AC 50Hz	Ambient Temperature	(20±2)℃

Specification

Model	Effective Volume	Flow Range	Uncertainty	Working Pressure
HQD-0.01	10mL	(0.04～20)mL/min	≤0.05%, ≤0.1%	(0～1)MPa abs
HQD-0.02	20mL	(0.08～40)mL/min
HQD-0.1	100mL	(0.4～200)mL/min
HQD-0.2	200mL	(0.8～400)mL/min
HQD-0.5	500mL	(2～1000)mL/min
