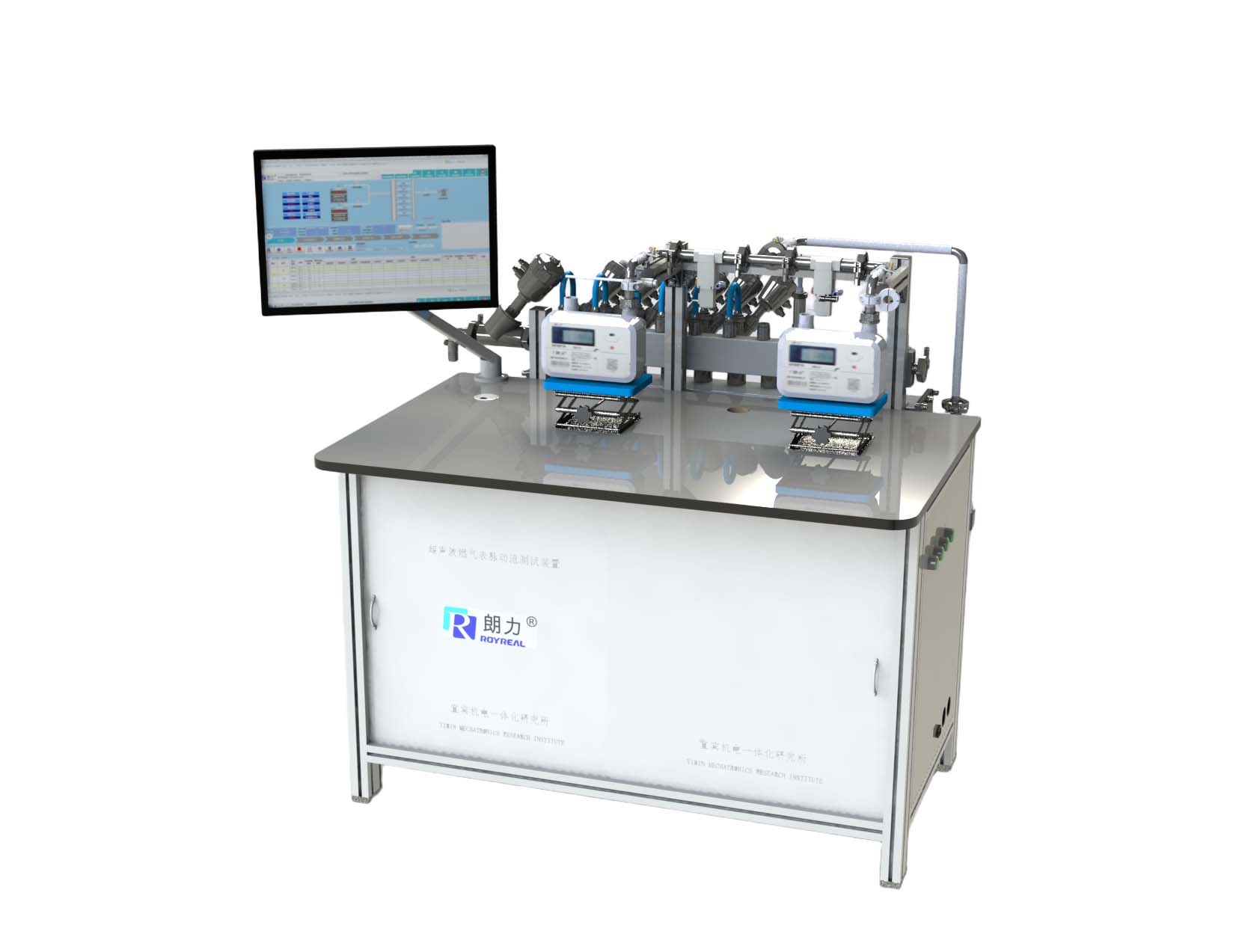

MDKW-PF Type Ultrasonic Gas Meters Pulsed Flow Testing Facility

Product Description

Product Introduction

Complies with international ultrasonic gas meter standards for pulsating flow performance testing. Conducts pulsating /continuous flow tests (0.07qmax～0.375qmax) to evaluate metrological performance/stability under pulsating flow—ideal for R&D, production, and quality control of ultrasonic gas meters.

Product Features

1. Sonic nozzles as stable, reliable flow standards

2. Advanced pneumatic control system and precision pulsating flow generator (simulates varying frequencies/amplitudes)

3. Comprehensive testing system (measures instantaneous/cumulative flow under pulsating flow)

4. Full evaluation of metrological accuracy and dynamic performance

5. Integrated automation and intelligent control (simple, efficient operation)

6. Supports multiple smart meter output modes (photoelectric pulses, infrared communication)

7. Auto-completes testing, real-time data collection/analysis, and detailed report generation

8. Sleek, modern design with technological aesthetics

Parameters

Item	Parameters	Item	Parameters
Uncertainty	≤0.5%	Meters Under Test	G1.6～G100 (0.175～60)m³/h
Flow Stability	＜0.1%	Pressure Testing	(60～110)kPa abs
Timing Stability	≤1×10^-6	Temperature Testing	(0～50)℃
Ambient Temperature	(20±5)℃	Humidity Testing	（0～100)%RH
Number of Gas Meters	2 units	Power Supply	220V±20V AC 50Hz
