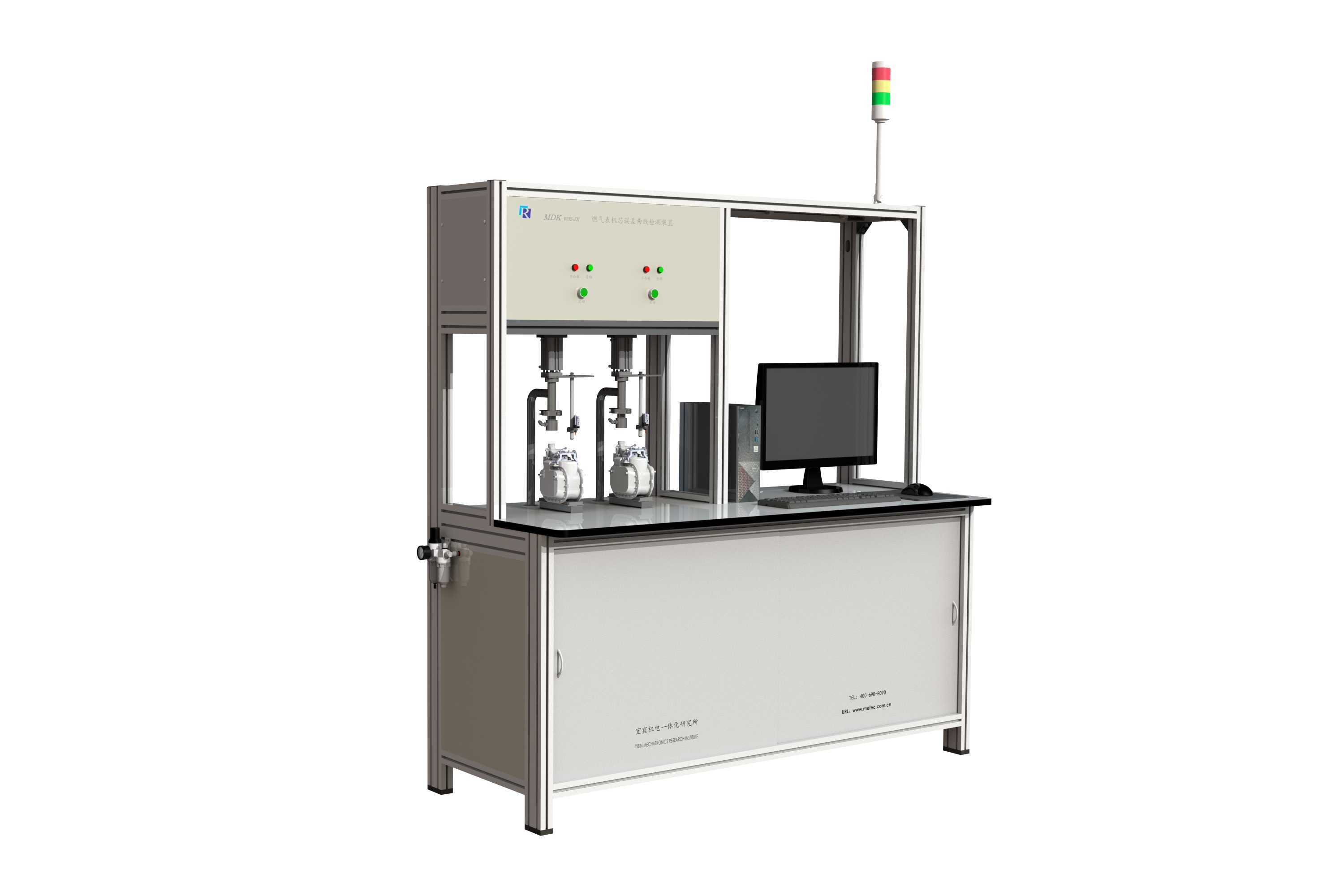

MDKW-ME Type Gas Meters Movement Error Curve Testing Facility

Product Description

Product Introduction

Dedicated to testing pressure loss and error of indication of diaphragm gas meter movements. Available in 2/4/6/8-position configurations to meet diverse efficiency needs.

Product Features

1. One-click start: Auto-completes simultaneous, continuous testing of pressure loss and error of indication

2. Independent standard metrological units for simultaneous testing of multiple movements

3. User-friendly HMI: Real-time data/status display via software

4. Sonic nozzles as flow standards (simple structure, stable performance, high accuracy, long service life)

5. High-precision pressure/temperature/humidity transmitters (excellent long-term stability)

6. Pneumatic clamping with flexible fixtures (fits various movement sizes)

7. Photoelectric sensors for real-time sampling of link mechanism motion (auto-converted to volume values)

8. Sleek, modern design with technological aesthetics

Parameters

Item	Parameters	Item	Parameters
Uncertainty	≤0.5%	Meters Under Test	G1.6 G2.5 G4
Flow Stability	＜0.1%	Height of Gas Meters	(150～250)mm
Pressure Testing	(60～110)kPa abs	Differential Pressure Testing	(-1000～1000)Pa
Temperature Testing	(0～50)℃	Ambient Temperature	(20±5)℃
Humidity Testing	（0～100)%RH	Power Supply	220V±20V AC 50Hz
Test Bench Size (L×W×H)	(1200×720×1880)mm (4 meter positions) (2100×720×1880)mm (8 meter positions)
