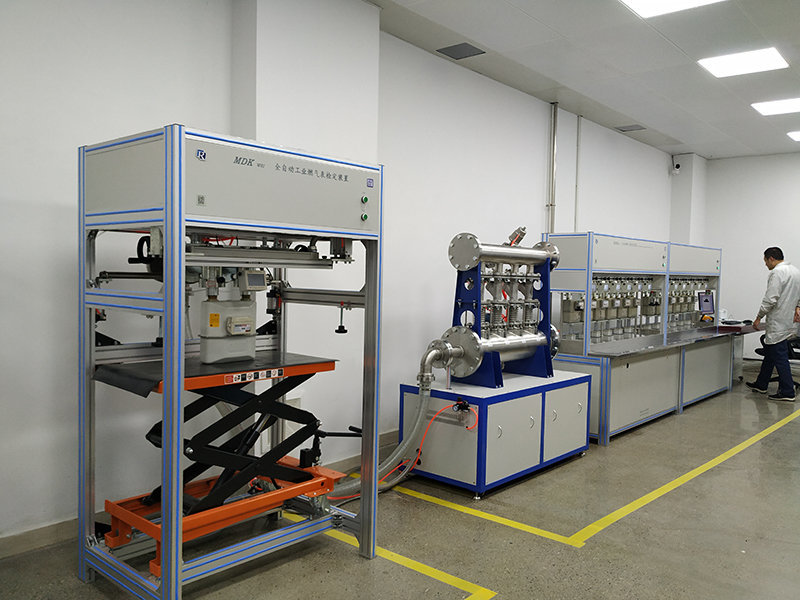

MDKW Type Fully Automatic Gas Meters Calibration Facility

Category： Domestic Meter G1.6-G6

Enquiry

Product Description

Product Introduction

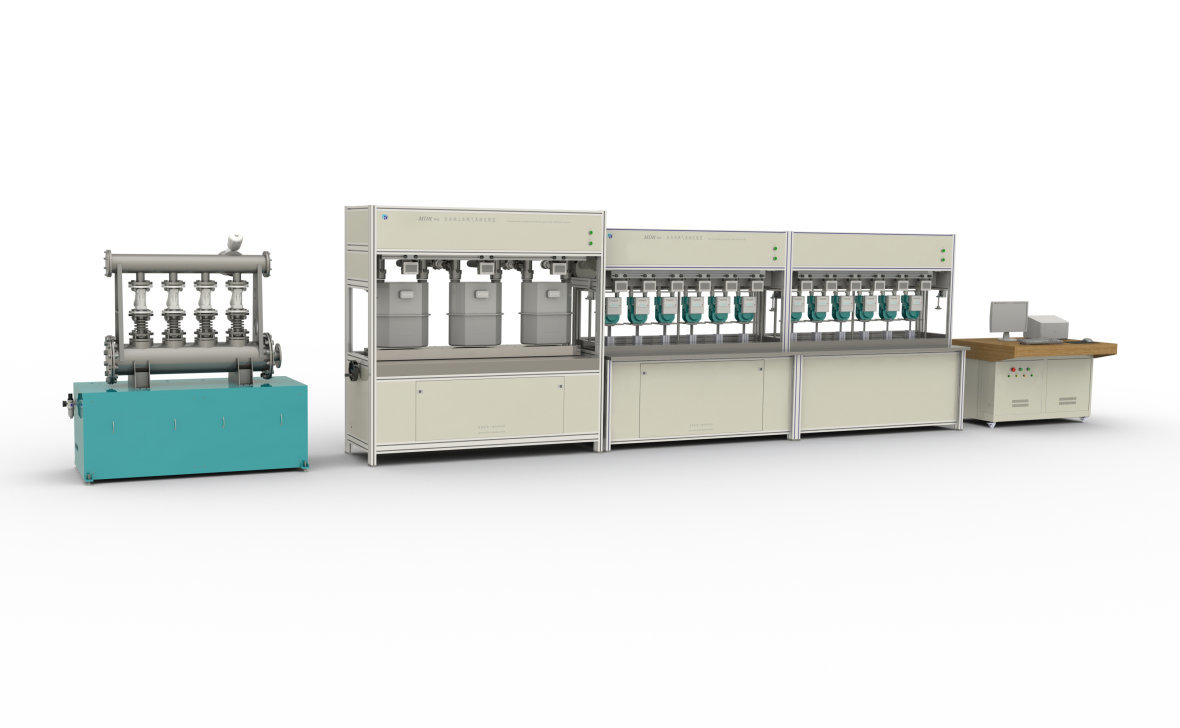

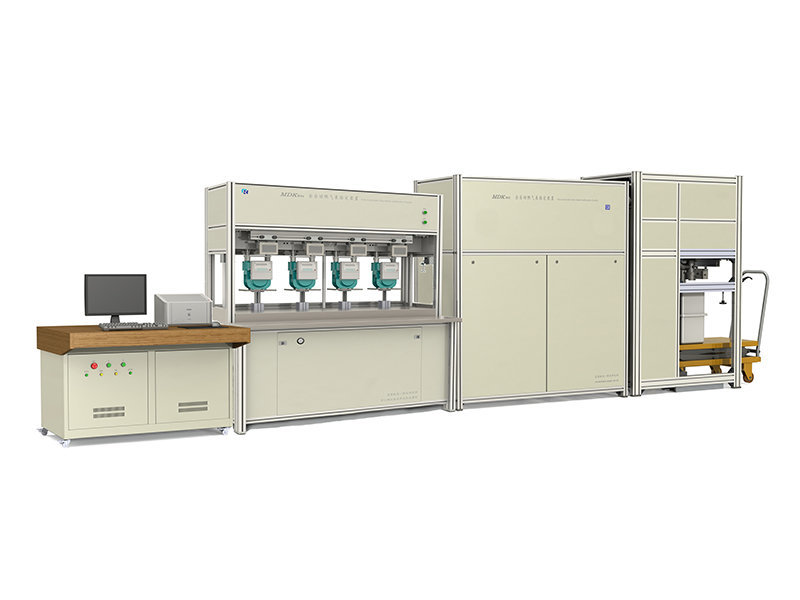

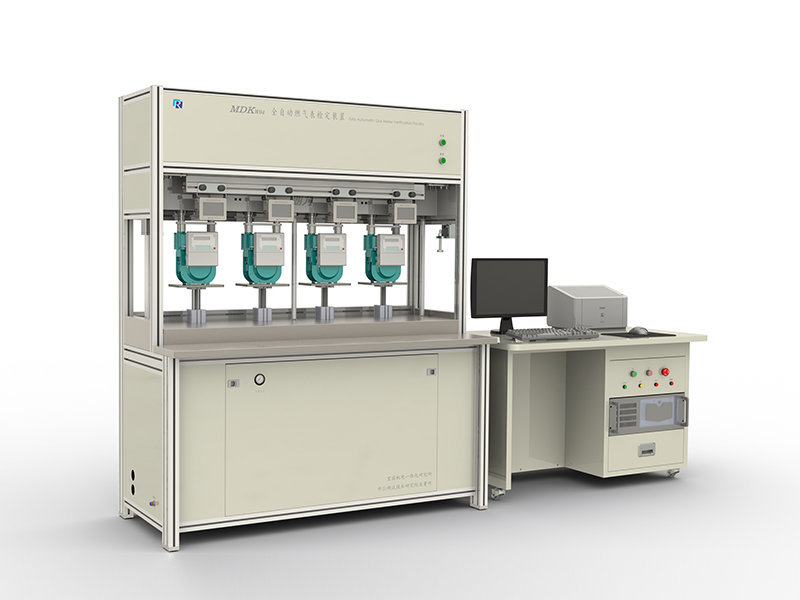

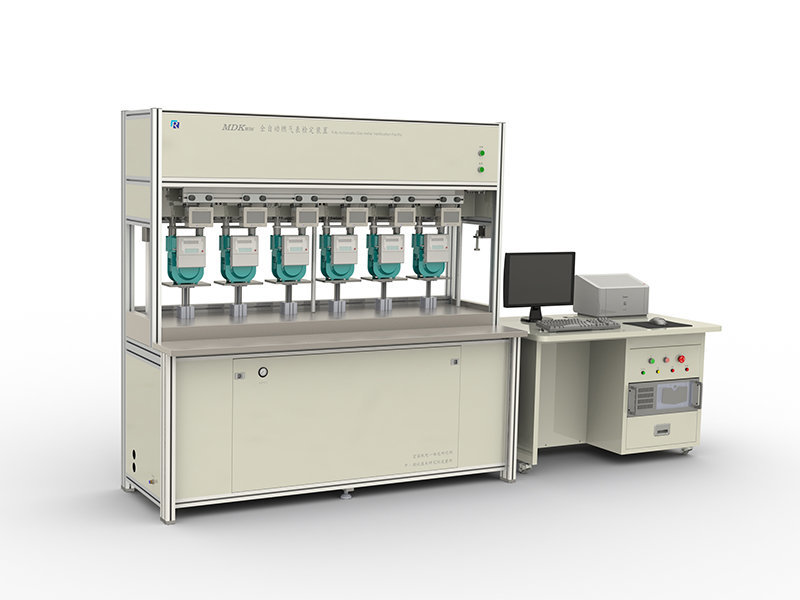

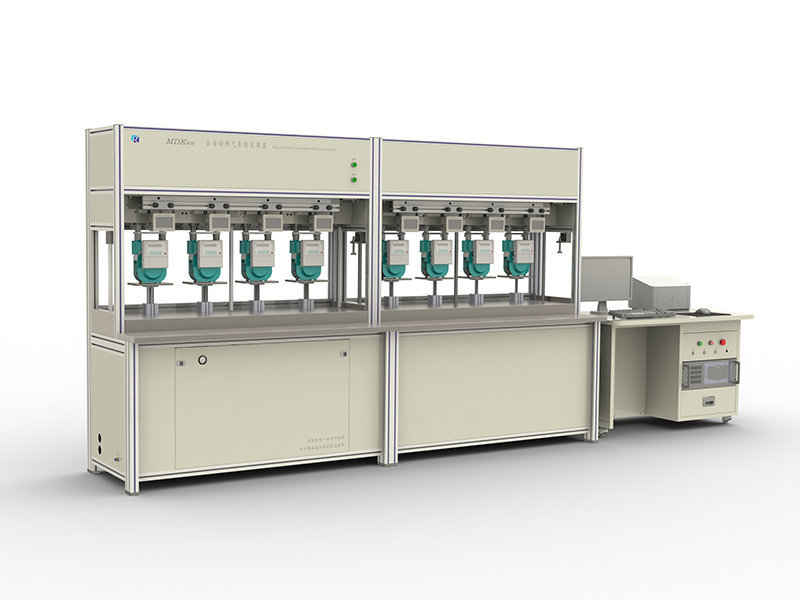

Uses sonic nozzles as flow standards (complies with international gas meter standards) for calibrating diaphragm, ultrasonic, and thermal gas meters. Available in 4/6/8/12-position configurations to meet diverse efficiency needs of metrology and testing institutions, gas companies, and gas meter manufacturers.

Product Features

1. One-stop simultaneous calibration of external leak tightness, error of indication, and pressure loss

2. Safety-focused: Tests leak tightness at maximum working pressure

3. Intelligent pneumatic clamping (one-click control for efficiency)

4. Auto-switching between leak tightness test, flow points, and left/right air intake

5. High-precision temperature/pressure testing

6. Intelligent image recognition for auto-calibration

7. 4 adjustable power supplies for smart gas meter calibration

8. Sleek, modern design with technological aesthetics

9. CE Certified

Parameters

Item	Parameters	Item	Parameters
Uncertainty	≤0.5%	Meters Under Test	G1.6～G6(0.016～10)m³/h
Pressure Testing	(60～110) kPa abs	Temperature Testing	(0～50)℃
External Leak Tightness	(0～100) kPa	Differential Pressure Testing	(-1000～1000)Pa
Humidity Testing	(0～100) %RH	Ambient Temperature	(20±5)℃
Timing Stability	≤1×10^-6	Power Supply	380V±38V AC 50Hz
Test Bench Size (L×W×H	(5300×720×1900)mm (12-meter positions)	Operation Bench Size (L×W×H)	(1200×720×740)mm
