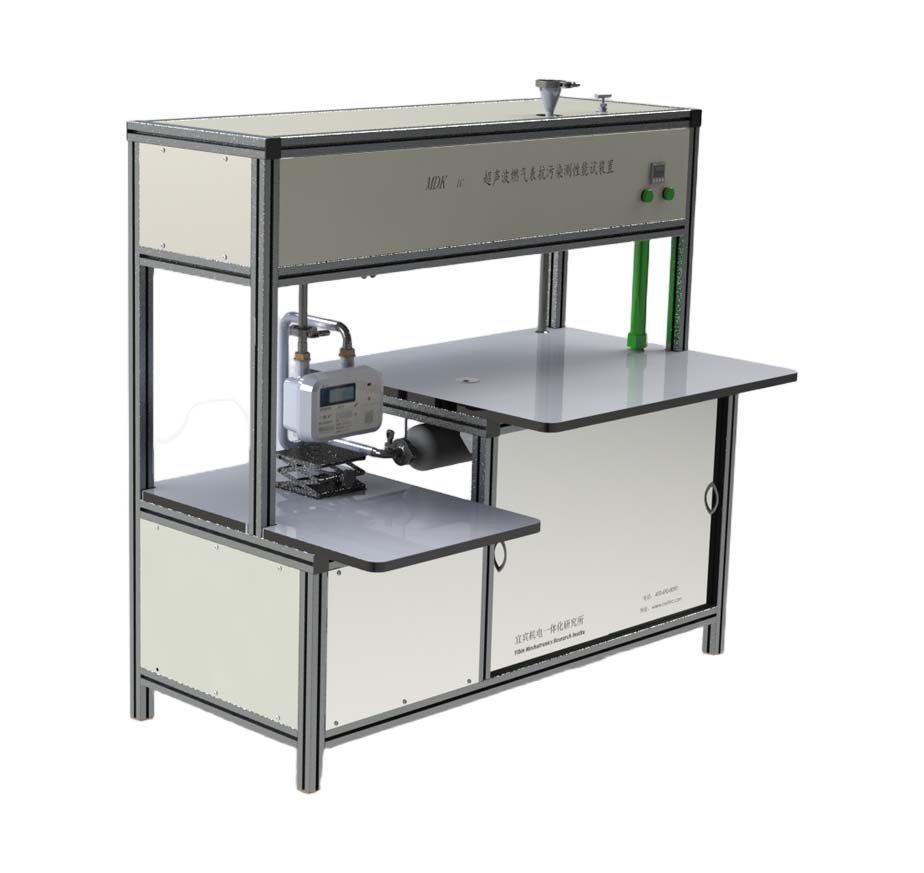

MDK-IC Type Ultrasonic Gas Meters Immunity to Contaminants Testing Facility
Category： Domestic Meter G1.6-G6
Product Description
Product Introduction
Dedicated to immunity to contaminants testing of ultrasonic gas meters (complies with international ultrasonic gas meter standards). Simulates harsh real-world conditions with specific contaminants to conduct multi-parameter testing—providing reliable data for R&D, production, and quality control of gas meters.
Product Features
1. Smooth-transition pipes/connectors (prevents dust adhesion)
2. Compressed air power source with pressure regulators, flow valves, and float meters (intuitive, stable adjustment)
3. Funnel-shaped throttling device (enhances flow control; ensures uniform dust-air mixing)
4. Polymer outlet filter (prevents test dust pollution)
5. Auto-pipe dust removal (simple operation, thorough effect)
6. Pneumatic clamping (simplifies operation, boosts efficiency)
7. Sleek, modern design with technological aesthetics
Parameters
Parameters | Item | Parameters | |
| Reference Flow Meter | Float Meter (1～10)m³/h | Meters Under Test | G1.6 G2.5 G4 G6 |
| Number of Gas Meters | 1 uint | Test Flow Rate | qmax≤10m³/h |
| Compressed Air | (0.45～0.7)MPa | Power Supply | 220V±20V AC 50Hz |
