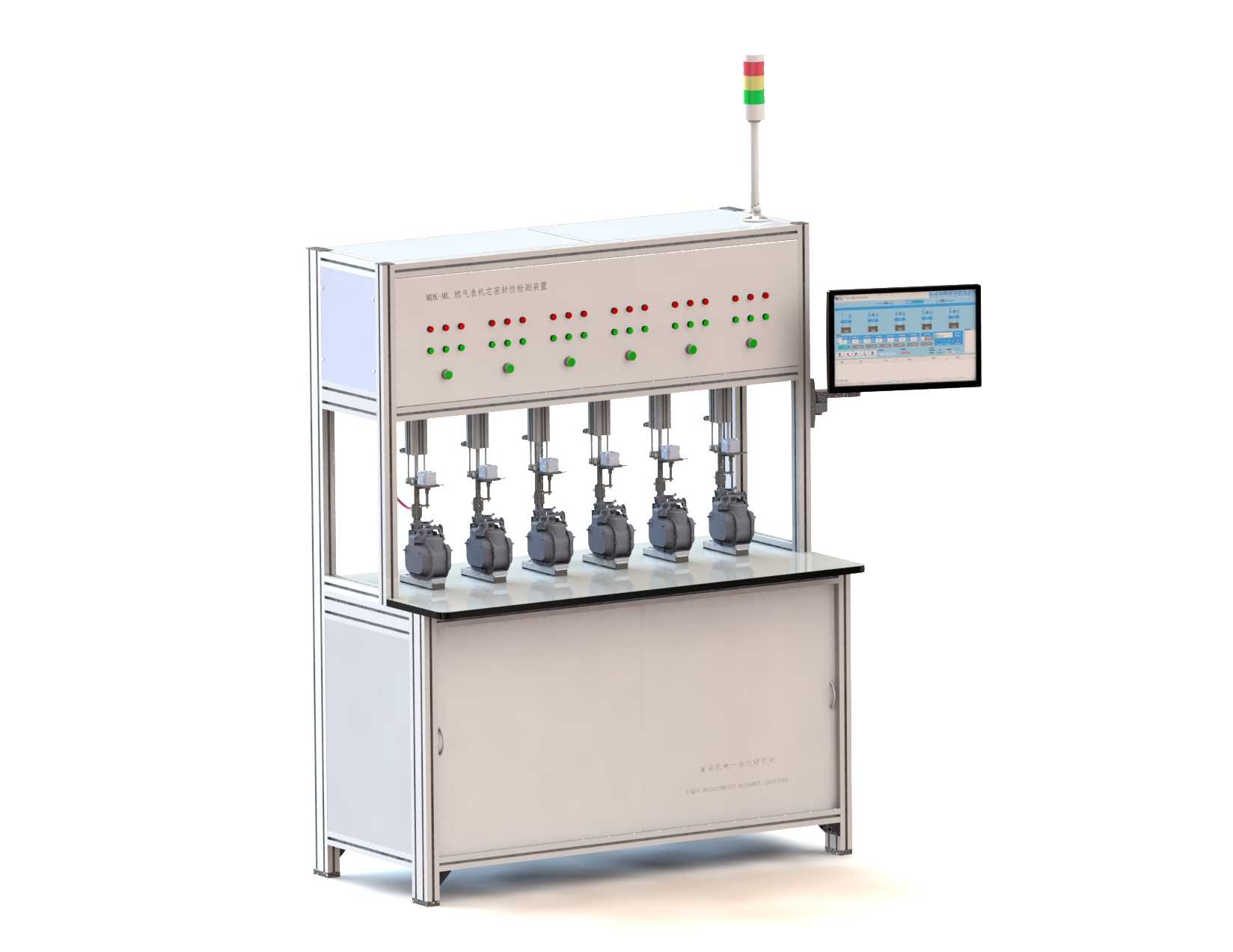

MDK-MS Type Gas Meters Movement Leak Tightness Testing Facility

Product Description

Product Introduction

Dedicated to dynamic sealing performance testing of G1.6–G4 diaphragm gas meter movements. Adopting the vacuum negative pressure method, it automatically completes two consecutive cycles of testing for four chambers with one clamping—no manual intervention required. Cycle time ≤90s/unit, available in 2/4/6-position configurations, ideal for gas meter manufacturers.

Product Features

1. One-click start: Auto-completes clamping, inflation, and testing (no manual intervention)

2. Independent testing units for simultaneous single/multiple movement testing

3. User-friendly HMI: Intuitive real-time data/status display

4. Intelligent stepper motor (90°indexing) for auto-sequential 4-chamber testing (red/green indicators for results)

5. High-precision differential pressure sensors (ensures data authenticity)

6. Pneumatic clamping with flexible fixtures (fits various movement sizes)

7. Quick parameter setting (test pressure, duration, pass threshold); supports multiple test schemes

8. Sleek, modern design with technological aesthetics

Parameters

Item	Parameters	Item	Parameters
Facility Resolution	1Pa	Meters Under Test	G1.6 G2.5 G4
Pressure Testing	(-1000～0)Pa	Differential Pressure Testing	(-1000～1000)Pa
Height of Gas Meters	(150～250)mm	Qualified Limit Range	(0～200)Pa
Testing Cycle Time	(0～999)s	Ambient Temperature	(20±5)℃
Stepper Motor Rotation Angle	(0～360)°	Power Supply	220V±20V AC 50Hz
