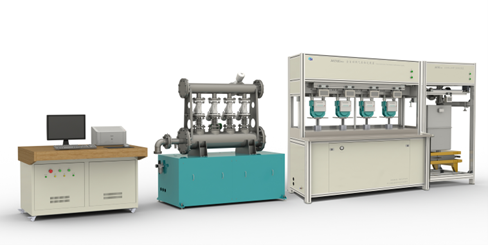

MDKW04+01 Type Fully Automatic Gas Meters Calibration Facility

Category： Industrial and Commercial Meter G6-G100

Product Description

Product Introduction

Uses sonic nozzles as flow standards (complies with international gas meter standards) for calibrating diaphragm, ultrasonic, and thermal gas meters. Operable in standalone 1-position, standalone 4-position, or combined mode to meet diverse efficiency needs of metrology and testing institutions, gas companies, and gas meter manufacturers.

Product Features

1. One-stop simultaneous calibration of external leak tightness, error of indication, and pressure loss

2. Supports 4-position (G6～G25) and 1-position (G6～G100) calibration

3. Safety-focused: Tests leak tightness at maximum working pressure

4. Auto-switching between leak tightness test and flow points

5. High-precision temperature/pressure testing

6. Intelligent image recognition for auto-calibration

7. Sleek, modern design with technological aesthetics

8. CE Certified

Parameters

Item	Parameters	Item	Parameters
Uncertainty	≤0.5%	Meters Under Test (4 meter positions)	G6～G25 (0.06～40)m³/h
Pressure Testing	(60～110) kPa abs	Meters Under Test (1 meter position)	G6～G100 (0.06～160)m³/h
External Leak Tightness	(0～100) kPa	Temperature Testing	(0～50)℃
Humidity Testing	(0～100) %RH	Differential Pressure Testing	(-1000～1000)Pa
Timing Stability	≤1×10^-6	Power Supply	380V±38V AC 50Hz
Test Bench Size (L×W×H)	(3360×800×19000)mm	Operation Bench Size (L×W×H)	(1200×720×740)mm
