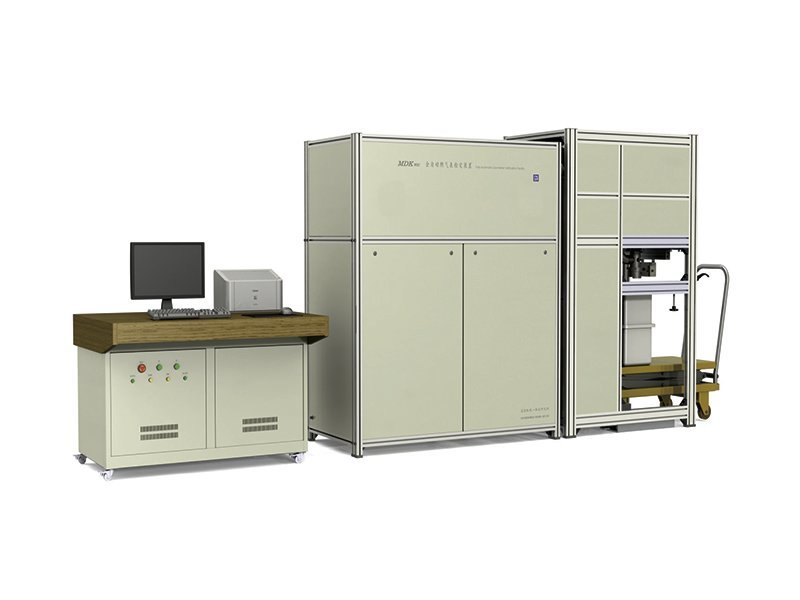

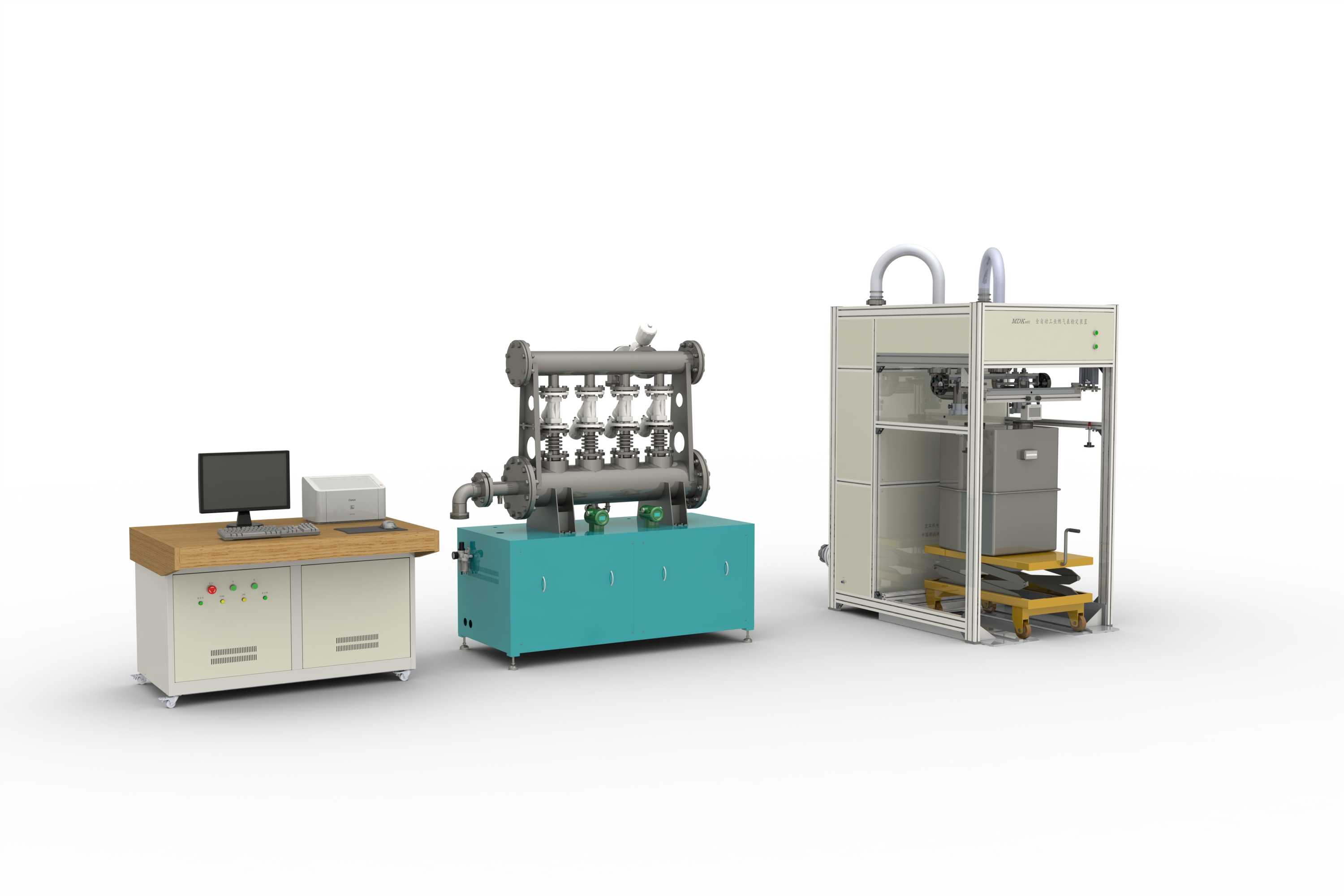

MDKW01 Type Fully Automatic Gas Meters Calibration Facility

Category： Industrial and Commercial Meter G6-G100

Product Description

Product Introduction

Uses sonic nozzles as flow standards (complies with international gas meter standards) for calibrating diaphragm, ultrasonic, and thermal gas meters. Is used to test G6 to G100 type gas meters, which is applicable to measurement and testing institutions, gas companies and gas meter manufacturers.

Product Features

1. One-stop simultaneous calibration of external leak tightness, error of indication, and pressure loss

2. Supports 1-position (G6～G100) calibration

3. Safety-focused: Tests leak tightness at maximum working pressure

4. Auto-switching between leak tightness test, flow points, and left/right air intake

5. High-precision temperature/pressure testing

6. Intelligent image recognition for auto-calibration

7. Sleek, modern design with technological aesthetics

8. CE Certified

Parameters

Item	Parameters	Item	Parameters
Uncertainty	≤0.5%	Meters Under Test	G6～G100 (0.06～160)m³/h
Pressure Testing	(60～110) kPa abs	Temperature Testing	(0～50)℃
External Leak Tightness	(0～100) kPa	Differential Pressure Testing	(-1000～1000)Pa
Humidity Testing	(0～100) %RH	Ambient Temperature	(20±5)℃
Timing Stability	≤1×10-6	Power Supply	380V±38V AC 50Hz
