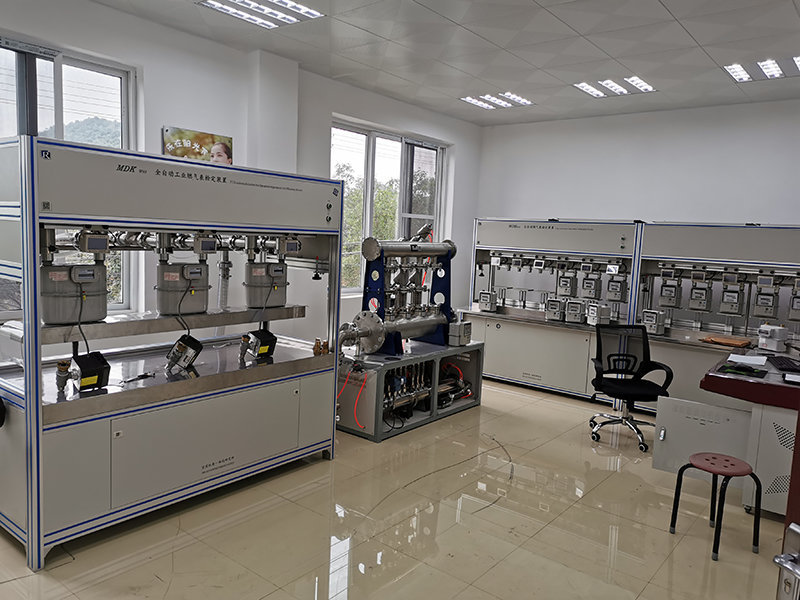

MDKW12+03 Type Fully Automatic Gas Meters Calibration Facility

Category： Domestic Meter + Industrial and Commercial Meter G1.6-G40

Enquiry

Product Description

Product Introduction

Uses sonic nozzles as flow standards (complies with international gas meter standards) for calibrating diaphragm, ultrasonic, and thermal gas meters. Equipped with 12-position for residential meters (G1.6～G4) and 3-position for industrial/commercial meters (G6～G25), meeting dual-type testing needs of metrology and testing institutions, gas companies, and gas meter manufacturers.

Product Features

1. One-stop simultaneous calibration of external leak tightness, error of indication, and pressure loss

2. Supports 12-position (G1.6～G4) and 3-position (G6～G25) calibration

3. Safety-focused: Tests leak tightness at maximum working pressure

4. Auto-switching between leak tightness test, flow points, and left/right air intake

5. High-precision temperature/pressure testing

6. Intelligent image recognition for auto-calibration

7. Sleek, modern design with technological aesthetics

8. CE Certified

Parameters

Item	Parameters	Item	Parameters
Uncertainty	≤0.5%	Meters Under Test (12 meter positions)	G1.6～G4 (0.016～6)m³/h
Pressure Testing	(60～110) kPa abs	Meters Under Test (3 meter positions)	G6～G25 (0.06～40)m³/h
External Leak Tightness	(0～100) kPa	Temperature Testing	(0～50)℃
Humidity Testing	(0～100) %RH	Differential Pressure Testing	(-1000～1000)Pa
Timing Stability	≤1×10^-6	Power Supply	380V±38V AC 50Hz
Test Bench Size (L×W×H)	(3600×720×1765)mm (12 meter positions)	Operation Bench Size (L×W×H)	(1200×720×740)mm
