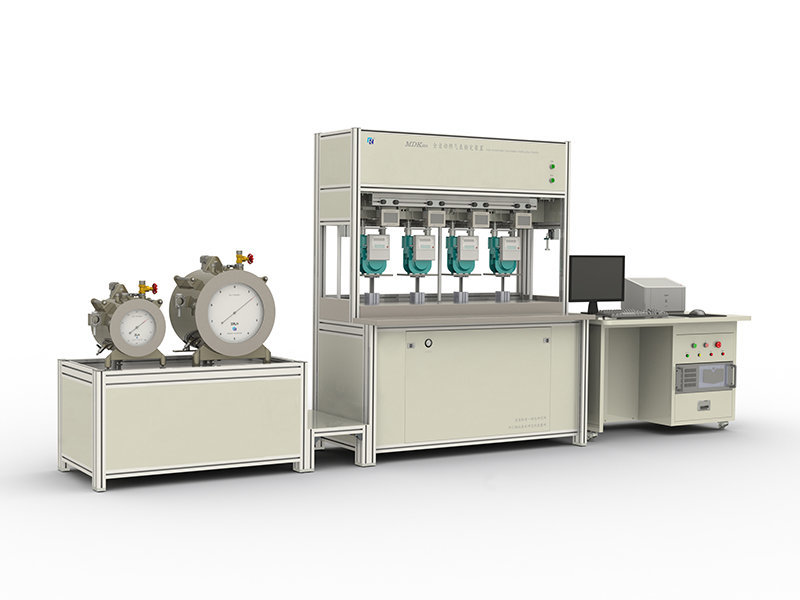

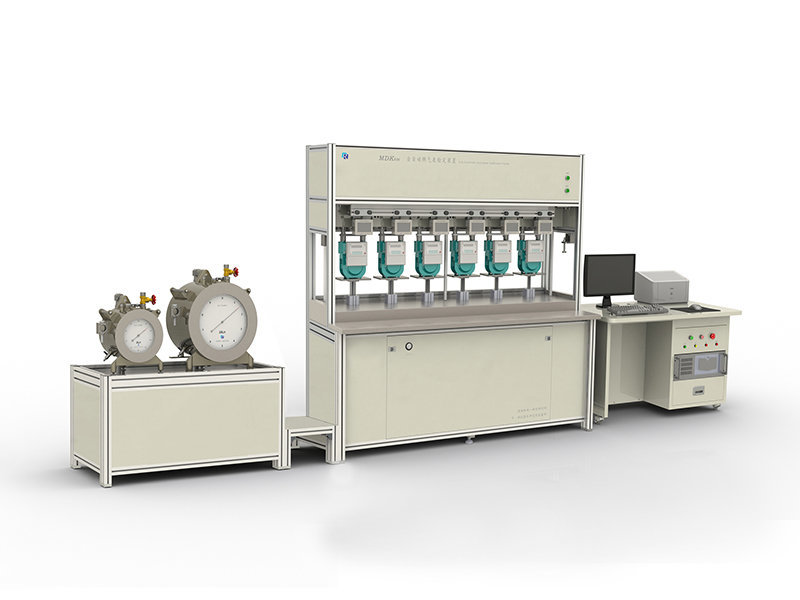

MDKS Type Fully Automatic Gas Meters Calibration Facility

Category： Domestic Meter G1.6-G6

Enquiry

Product Description

Description

Uses wet gas flow meter as flow standards (complies with international gas meter standards) for calibrating diaphragm, ultrasonic, and thermal gas meters. Available in 4/6/8/12-position configurations to meet diverse efficiency needs of metrology and testing institutions, gas companies, and gas meter manufacturers.

Features

1. Leak Test, indication Error and Pressure Loss can be continuously tested at a time.
2. Keep the gas meter safe, check the sealing performance under the maximum working pressure of the gas meter and never let go of any leakage point,and prevent potential safety hazards.
3. Intelligent Air-Operated Meter, one-touch control, easily and efficiently.
4. Leak Test, Gas Meter Flow Point can switch automatically , left and right gas-inlet can switch automatically.
5. High accuracy of Temperature And Pressure Test, measurement value can be transmitted rapidly by fieldbus.
6. Adopt Intelligent Image Capture Terminal, can recognize the gas meter number automatically.
7. Four Types Of Adjustable Powers provided in order to test intelligent gas meters conveniently.
8. Simple and Graceful appearance, Modern and Technological.

Parameters

Item	Parameters	Item	Parameters
Uncertainty	≤0.5%	Meters Under Test	G1.6～G4 (0.016～6)m³/h
Pressure Testing	(60～110) kPa abs	Temperature Testing	(0～50)℃
External Leak Tightness	(0～100) kPa	Differential Pressure Testing	(-1000～1000)Pa
Humidity Testing	(0～100) %RH	Ambient Temperature	(20±5)℃
Timing Stability	≤1×10-6	Power Supply	220V±20V AC 50Hz
Test Bench Size (L×W×H)	(3600×720×1900)mm (12-meter positions)	Operation Bench Size (L×W×H)	(1200×720×740)mm
