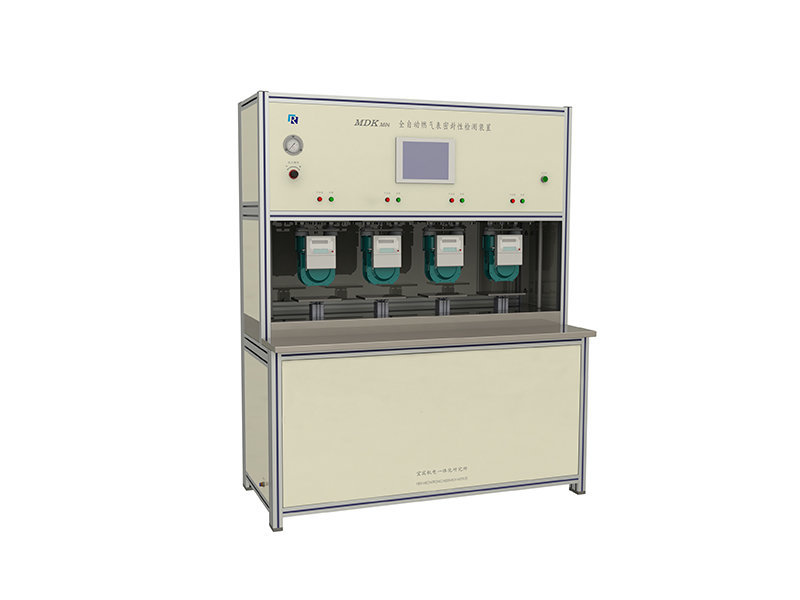

MDKM Gas Meter Leakage Test Bench

Category： Domestic Meter G1.6-G6

Enquiry

Product Description

Product Introduction

The equipment is subject to the regulations of JJG577-2012 diaphragm gas meter and JJF 1354-2012 diaphragm gas meter type evaluation outline, and is used to verify the tightness of G1.6～G4 diaphragm gas meter. It is applicable to measurement and testing institutions, gas companies and gas meter manufacturers.The equipment is divided into 4 and 6 gauge, to adapt to different user meter efficiency requirements.

Product Features

1. One-key start and stop, automatic completion of cylinder up, clamping, sealing, cylinder down, inflation, pressure regulation, testing and all other functions.
2. Pneumatic suspension clamping table, with preloading function, clamping table easy and convenient.
3. Industrial tablet computer with friendly man-machine interface.Real-time data, working status and workflow are displayed on the touch screen.
4. Equipped with buffer tank, to ensure the rapid and stable inflation pressure, reduce the impact on the gas meter.
5. It has functions of parameter setting, data saving and query, status query, fault record and query,and password protection.
6. Laser barcode scanner is used to automatically scan and input the gas meter number.
7. Simple appearance atmosphere, rich sense of modern and science and technology.

Parameters

Item	Parameters	Item	Parameters
Test Bench Resolution	1Pa	Inspection table specification	G1.6 G2.5 G4
Pressure Transmitter	（0～100）kPa	Stability	±3Pa
Stabilization Time Range	(0～65520) s	Detection Time Range	(0～65520) s
Leak Test	(0～100) kPa	Center Distance of Gas Mete	(90～160) mm
Humidity Test	45%～70%	Power Supply	220V±20V AC 50Hz
Test Bench Size	L × W × H (4 Workstations) 1450×720×1765 mm
