SQB Wet Gas Flow Meter

SQB Wet Gas Flow Meter

Repeatability: better than 0.1% Wide range ratio: 1:300 Flow range: (0.016 ~200) L/min Intelligent measurement and intelligent correction

MDKW12 Gas Meter Test Bench

MDKW12 Gas Meter Test Bench

Device uncertainty: ≤0.5%,≤0.3% Number of gas meters: 12 gas meters Gas meter specifications: G1.6, G2.5, G4 and G6 (customizable) Flow rate range: (0.016 ~10)m³/h

HQD Active Piston Prover

HQD Active Piston Prover

Device uncertainty: ≤0.05%,≤0.1% Flow stability: ≤0.1% Maximum working pressure: 200kPa (absolute pressure) Flow rate range: (0.1~1000)L/min

QJG04 Flow Computer

QJG04 Flow Computer

MPE of flow calculation: ±0.05% MPE of flow accumulation: ±0.02% MPE of loop measurement: ±0.1% F.S.

Product Advantage

Intelligent instruments and gas flow measurement and control devices

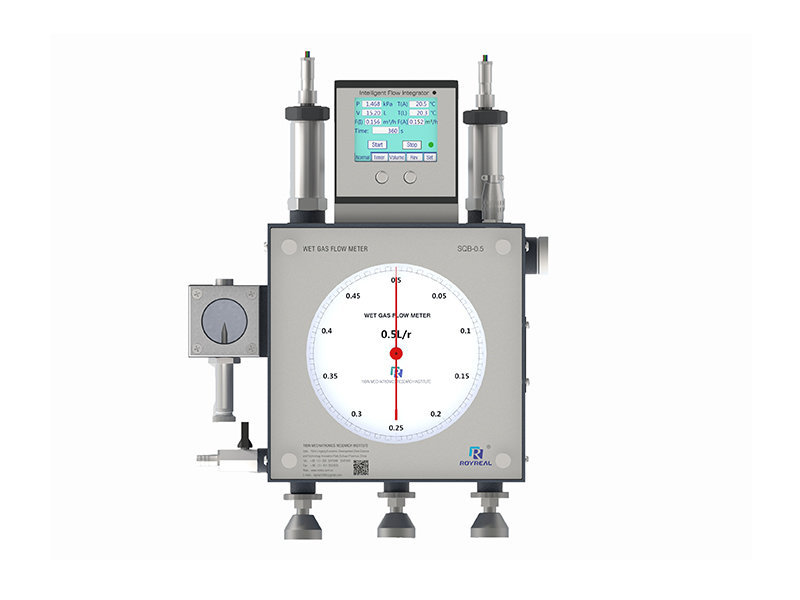

SQB Wet Gas Flow Meter

SQB Wet Gas Flow Meter

Ultra-wide flow range 1:300 Repeatability better than 0.1% Multiple automatic measurement methods (timed, constant volume, constant rotation) Intelligent measurement! Makes measurement easier Intelligent correction (automatic volume and flow rate correction) Intelligent line control start/stop Each after 0.05 level active piston gas flow standard device strictly calibrated to ensure accuracy Fully digital flow meter (temperature, pressure, volume, flow rate high-precision measurement, bus communication) Never leak (using advanced magnetic coupling drive technology, non-oil seal seal)

MDKW Gas Meter Test Bench

MDKW Gas Meter Test Bench

Leak test, value error and pressure loss one-time continuous testing on the same stage Check the safety of the gas meter, can test the gas meter under the maximum working pressure of the seal, never let go of any leakage point, to eliminate the hidden danger of safety Intelligent pneumatic clamp meter, one key control, easy and efficient Leak test and test flow point automatically switch, left and right air inlet automatically switch High accuracy of temperature and pressure measurement, real-time high-speed transmission of measurement values by bus Adopt intelligent image acquisition terminal, automatic identification of gas meter word wheel value Provide 4 kinds of adjustable power supply to facilitate the calibration of smart gas meters Simple and atmospheric appearance, rich in modern and technological sense

HQD Active Piston Prover

HQD Active Piston Prover

Measurement performance equal to the measurement reference High accuracy of temperature and pressure measurement Precision measurement of piston stroke Wide range of flow and pressure, stable output Multi-stage seal, no leakage, self-lubrication Multi-protection, safe to use Fully automatic measurement and control, bus real-time high-speed transmission measurement Small footprint, easy to move

QJG04 Flow Computer

QJG04 Flow Computer

Differential transmission control tool High accuracy and wide flow range Black box function, easy to analyze and find problems Powerful metering management function Compact structure, easy to install Simple appearance, modern and technological sense

It was founded in 1990

Intelligent instruments and gas flow measurement and control devices

Company Profile

Yibin Mechatronics Research Institute was established in early 1990. It is a national high-tech enterprise engaged in the research, development and production of intelligent instruments and gas flow measurement and control devices. The products include wet gas flowmeter, automatic gas meter verification device, automatic intelligent gas meter calibration line, gas flow standard device and so on. Products have been exported to Europe, America, Asia, Russia, Ukraine and other countries and regions.

Read More +
30 +

Founded for more than 30 years

2000 +

Serving more than 2000 customers

30 +

Customers in more than 30 countries

300 +

More than 300 national partners

Project Case

Wet Gas Flow Meter

Gas Meter Test Bench

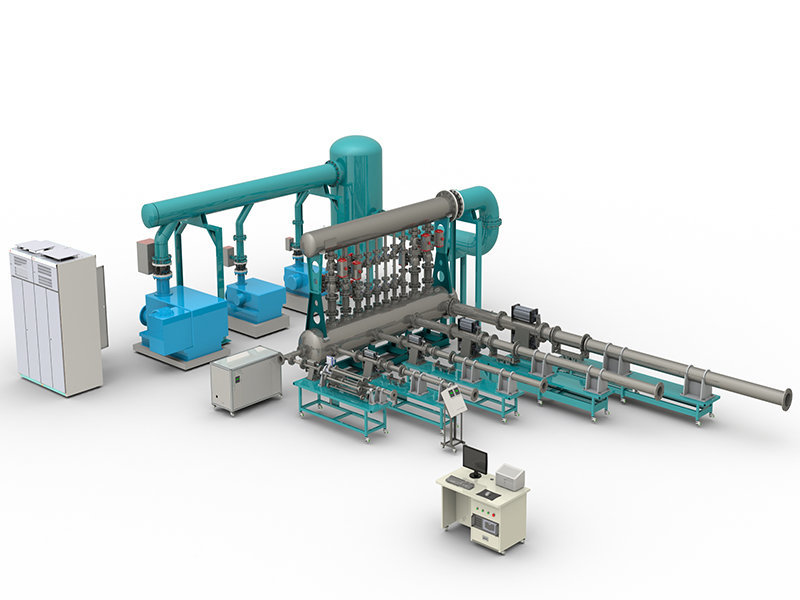

Gas Flow Calibration Facility

Flow Computer

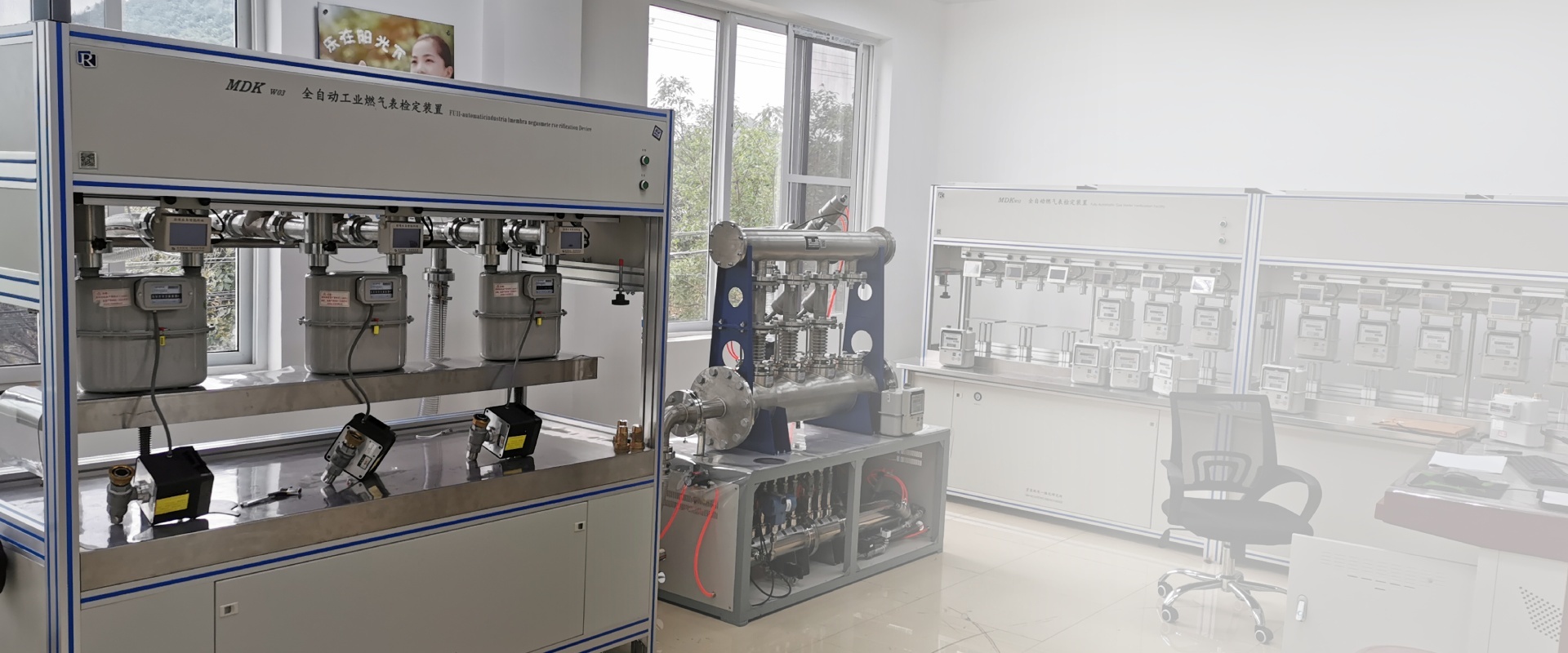

MDKW12+01 Sonic Nozzle Gas Meter Test Bench

MDKW12+01 Sonic Nozzle Gas Meter Test Bench

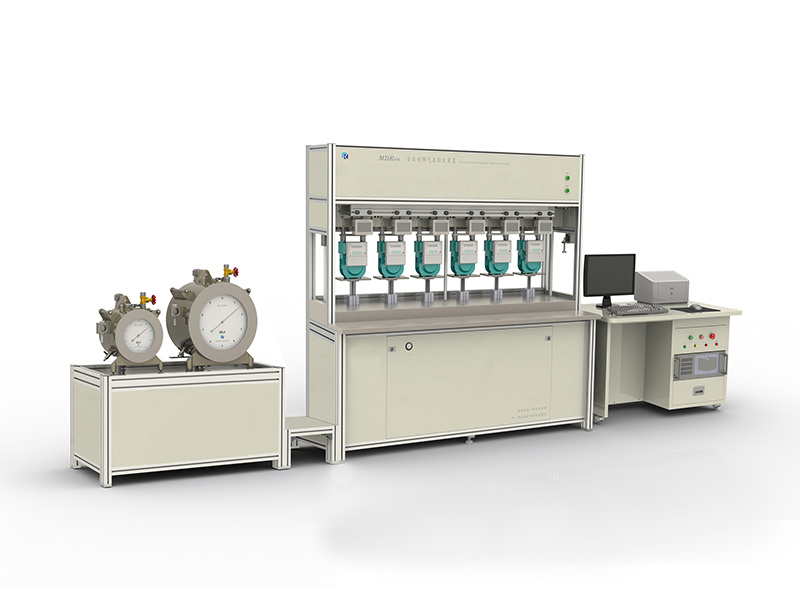

MDKW-12 Sonic Nozzle Gas Meter Test Bench

MDKW-12 Sonic Nozzle Gas Meter Test Bench

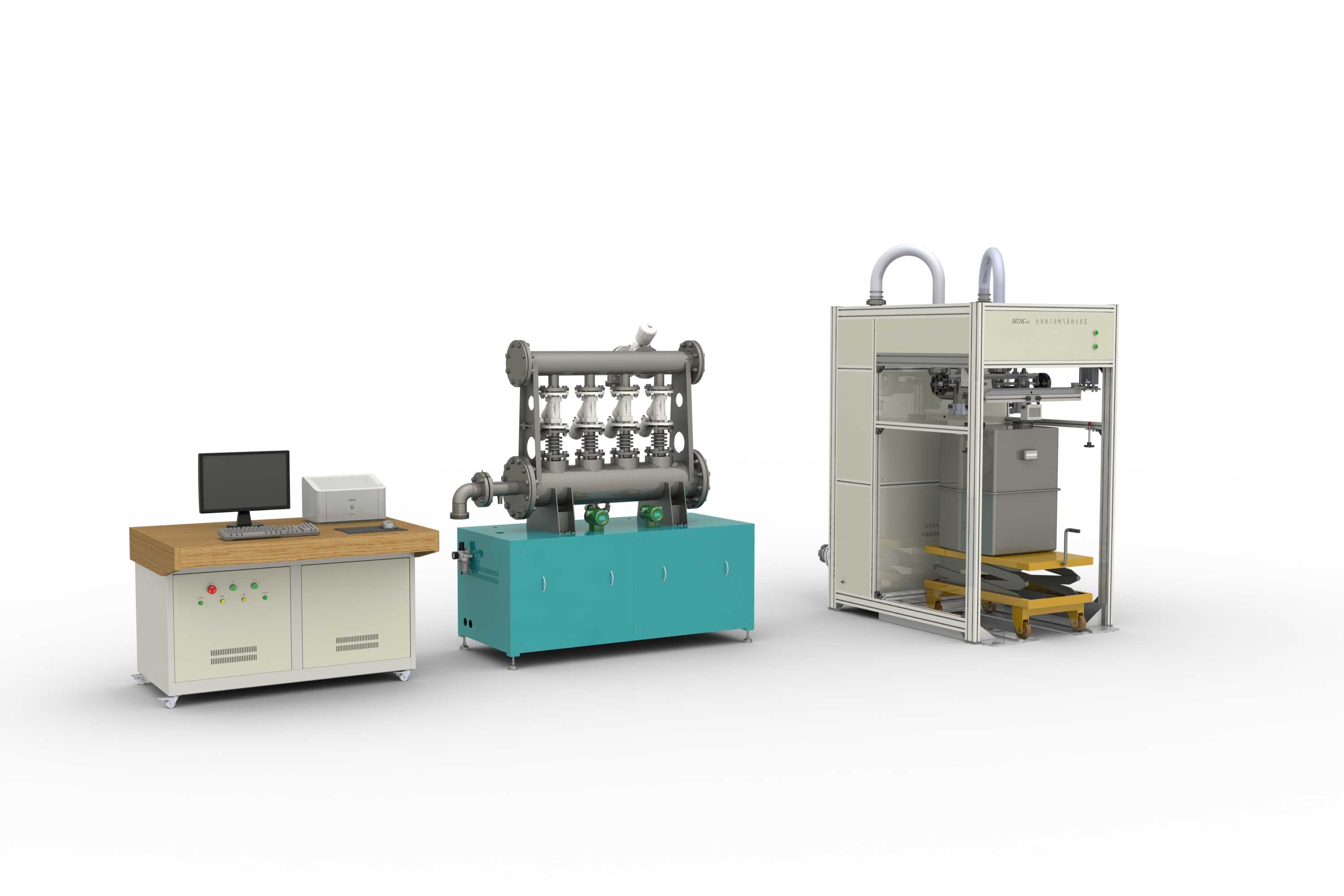

MDKW-01 Sonic Nozzle Gas Meter Test Bench

MDKW-01 Sonic Nozzle Gas Meter Test Bench

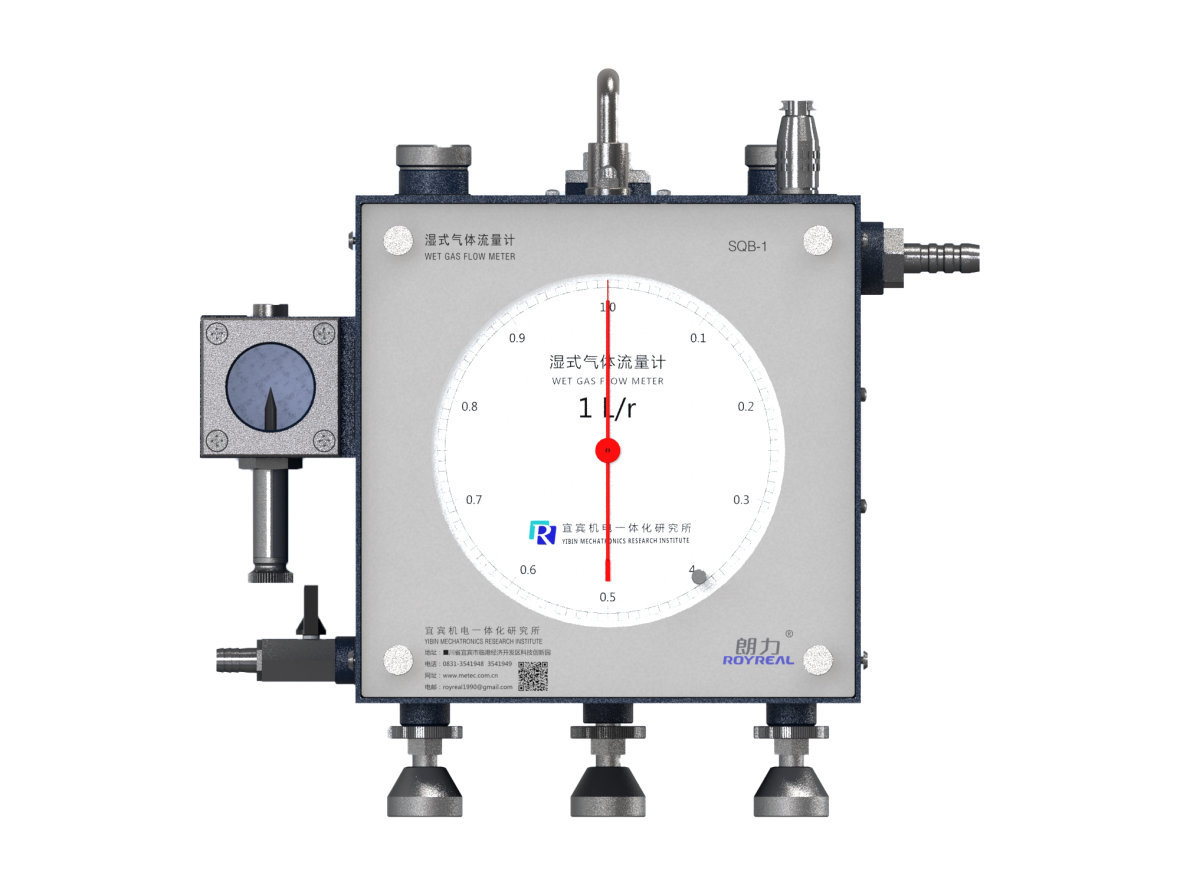

SQB-1 Wet Gas Flow Meter

SQB-1 Wet Gas Flow Meter

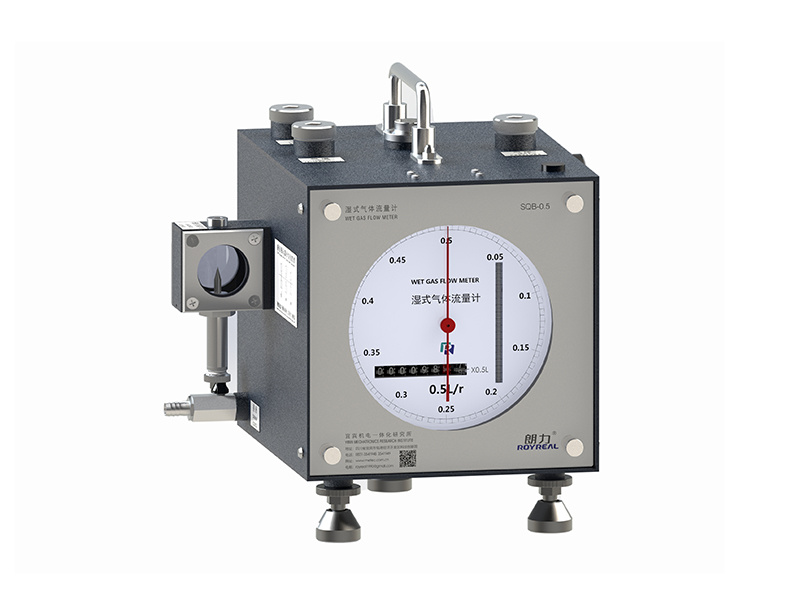

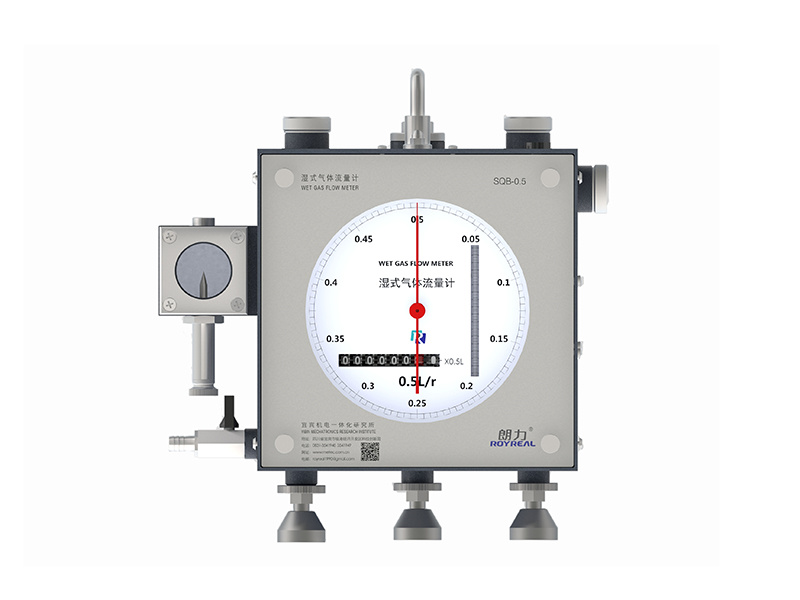

SQB-0.5 Wet Gas Flow Meter

SQB-0.5 Wet Gas Flow Meter

SQB-10 Wet Gas Flow Meter

SQB-10 Wet Gas Flow Meter

News Center

The Importance of Bell Prover in Instrument Calibration

**Introduction** In the world of instrumentation and measurement, accuracy is paramount. Whether it's in a laboratory setting or an industrial environment, the need for precise and reliable data is essential. Instrument calibration is the process of adjusting and verifying the accuracy of measurement devices to ensure they are performing within specified tolerances. One critical tool used in this

2024-04-29

Innovate gas meter test process and increase efficiency - leading the gas meter test bench of the future

Accurate measurement, efficient detection and safety testing have become the key to the development of the gas industry. We solemnly launch a new generation of gas meter test bench, which with its excellent stability, accurate indication error and pressure loss test and innovative sealing verification technology, effectively reduces the work intensity of testers, for the gas meter quality control provides a strong technical support. Gas meter test bench offer exceptional stability. The stable structure design, reliable components and high-precision transmitter are used to verify the stability and working ability of the test bench in the high-intensity test work of the gas meter factory. It ensures the safety and reliability of the gas meter test bench from the source, and also greatly improves the accuracy and stability of the test data. Precision sensor technology and intelligent algorithms are used in the measurement of indicating error and pressure loss, which can realize real-time and accurate monitoring of the gas meter flow value, ensuring that every gas meter meets high-quality requirements. Our gas meter test bench has achieved groundbreaking verification of tightness, indication error and pressure loss. The detection of tightness, indicating error and pressure loss is completed at the same time on the same platform, without multiple disassembly and transfer, which greatly simplifies the operation process, significantly reduces the workload of the tester, and improves the overall work efficiency. This gas meter test bench has reached the industry-leading level in terms of technology, but also truly achieved the improvement of detection efficiency and labor cost savings in practical applications. Let us jointly witness how this technological innovation promotes the development of the gas meter verification industry, serves society with a more professional and efficient attitude, and protects the gas safety of every family.

2024-04-25

Understanding Sonic Nozzle Gas Flow Standard Facilities in Construction and Decor Materials

In the field of construction and decoration materials, the use of sonic nozzle gas flow standard facilities is essential for maintaining accuracy and precision in various processes. Sonic nozzles are devices that allow the precise control of gas flow rates, making them ideal for applications where accurate measurements are crucial. These facilities are commonly used in testing laboratories and res

2024-04-25

Unlocking the Secrets: Understanding the Working Principle of Sonic Nozzles in Gas Flow Standard Facilities

**Introduction** Gas flow standard facilities play a crucial role in ensuring accurate measurements and maintaining safety standards in various industries. Among the key components of these facilities are sonic nozzles, which are designed to control and regulate the flow of gas with precision. In this article, we will delve into the working principle of sonic nozzles, their functionality, and the

2024-04-21

Sonic Nozzle Gas Flow Standard Facility: A Key Component in Building and Decor Materials

In the realm of building and decor materials, the sonic nozzle gas flow standard facility plays a crucial role in ensuring precision and efficiency in various construction processes. This specialized equipment is designed to accurately measure and control the flow of gas in a wide range of applications, making it an indispensable tool for professionals in the industry. One of the key functions of

2024-04-17

Exploring the Significance of Sonic Nozzles in Gas Flow Measurements

**Introduction** Gas flow measurements are essential in various industries, including manufacturing, energy production, and environmental monitoring. Accurate measurements of gas flow rates are crucial for maintaining process efficiency, ensuring safety, and meeting regulatory standards. One of the key instruments used in gas flow measurements is the sonic nozzle. **What is a Sonic Nozzle?** A son

2024-04-13
